LNG Plant Liquefaction LNG Plant LNG Plant for Sale

LNG Plant Liquefaction LNG Plant LNG Plant for Sale

  • LNG Plant Liquefaction  LNG Plant LNG Plant for Sale
  • LNG Plant Liquefaction  LNG Plant LNG Plant for Sale
  • LNG Plant Liquefaction  LNG Plant LNG Plant for Sale
  • LNG Plant Liquefaction  LNG Plant LNG Plant for Sale
  • LNG Plant Liquefaction  LNG Plant LNG Plant for Sale
  • LNG Plant Liquefaction  LNG Plant LNG Plant for Sale
  • LNG Plant Liquefaction  LNG Plant LNG Plant for Sale

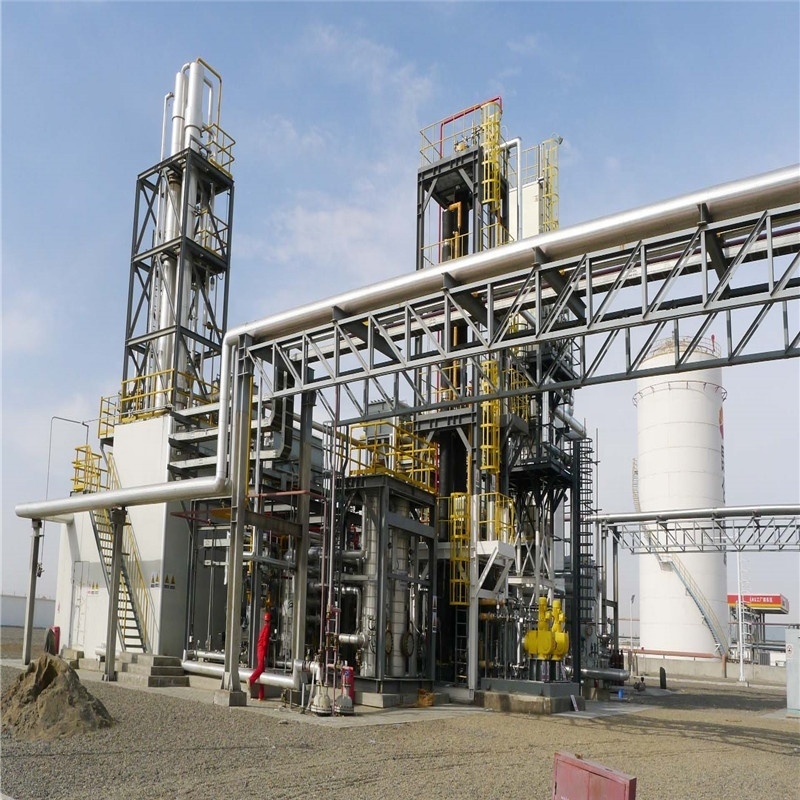

LNG Plant Liquefaction  LNG Plant LNG Plant for Sale
Product Details:
Contact Now
Detailed Product Description
颜色: 自定义 原产地: Sichuan, China
品牌: RT 用途: 天然气
电压: 380v,或定制 重量: 千克
尺寸(长×宽×高): 变化 保修期: 18个月
核心卖点: 节能 机械测试报告: 可提供
视频出厂验货: 可提供 核心组件: PLC, 压力容器, 泵
应用程序: LNG生产 认证: ISO9000、ISO14000
功能: 液化天然气 优势: 操作简单
售后服务: 提供

Product features

 Description:



 Process technical scheme

The selection principle of the process plan is mature and reliable, energy saving, reasonable investment and convenient operation and maintenance.

The process scheme is selected to start the rapid cold flow of high and low temperature turbine expansion mechanism. The configured equipment can start quickly and run stably; The unit capacity of the device is sufficient to reduce start-up time.



 Technology comparison and selection



The process of natural gas liquefaction basically includes feed gas pretreatment (purification), liquefaction, refrigerant circulation compression, product storage, loading and auxiliary system, etc. The main process includes feed gas purification and purification gas liquefaction process.



 Selection of natural gas purification process



As a raw gas, natural gas must be thoroughly purified before liquefaction. In other words, acid gas, water and impurities such as H2S, CO2, H2O, Hg and aromatic hydrocarbons in raw gas are removed to prevent them from freezing at low temperatures and clog and corrode equipment and pipelines.

Technical parameters



  Items

Theoretical calculation data

Notes

LNG production

Molar flow MMSCFD

4.849





Liquid state m3/D

224.88



The change of composition will lead to the change of liquid volume and mass



Mass  t/d

100.2

Storage pressure

MPa.G

0.2



Storage temperature

-160.1



Company display

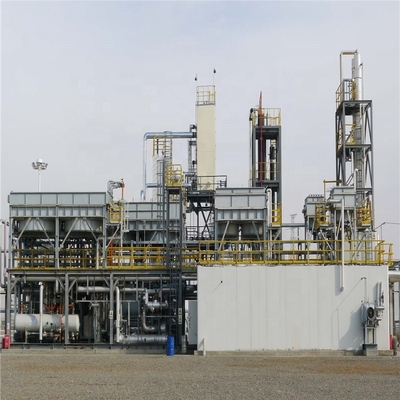

LNG Plant Liquefaction  LNG Plant LNG Plant for Sale 0

        Perfect quality system and testing facilities                                                     Strong R & D and design capabilities

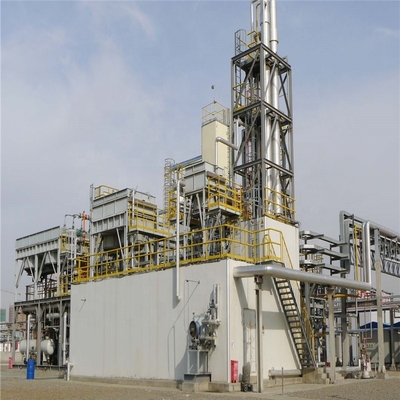

LNG Plant Liquefaction  LNG Plant LNG Plant for Sale 2

        120 R&D team provide the system solutions.                                                                      Timely delivery capability

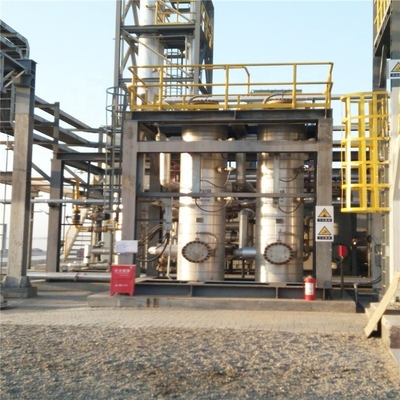

LNG Plant Liquefaction  LNG Plant LNG Plant for Sale 4



Perfect quality system and testing facilities                                               Good after-sales service and operation technical support



Our projects

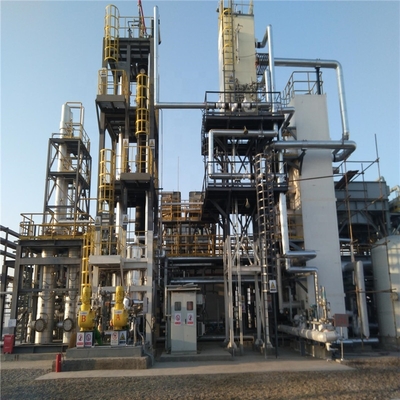

LNG Plant Liquefaction  LNG Plant LNG Plant for Sale 6

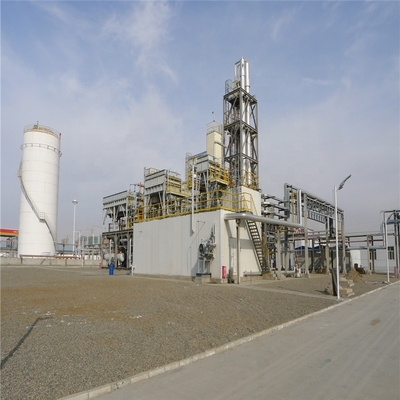

LNG Plant Liquefaction  LNG Plant LNG Plant for Sale 8
