Name: Cheap Small 250KW to 5MW Natural Gas Biogas Generator Set and Gas Powered Engined Generator Gas Generator Sets
Brand: Sichuan Rongteng Automation Equipment Co., Ltd.
Availability: InStock

Home Products Gas generator set

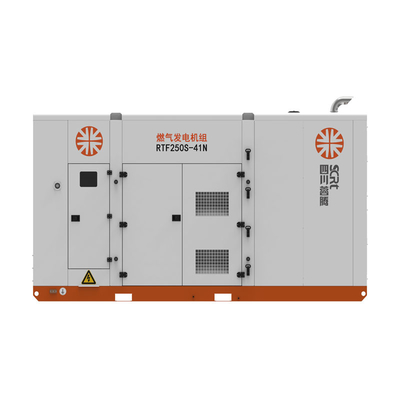

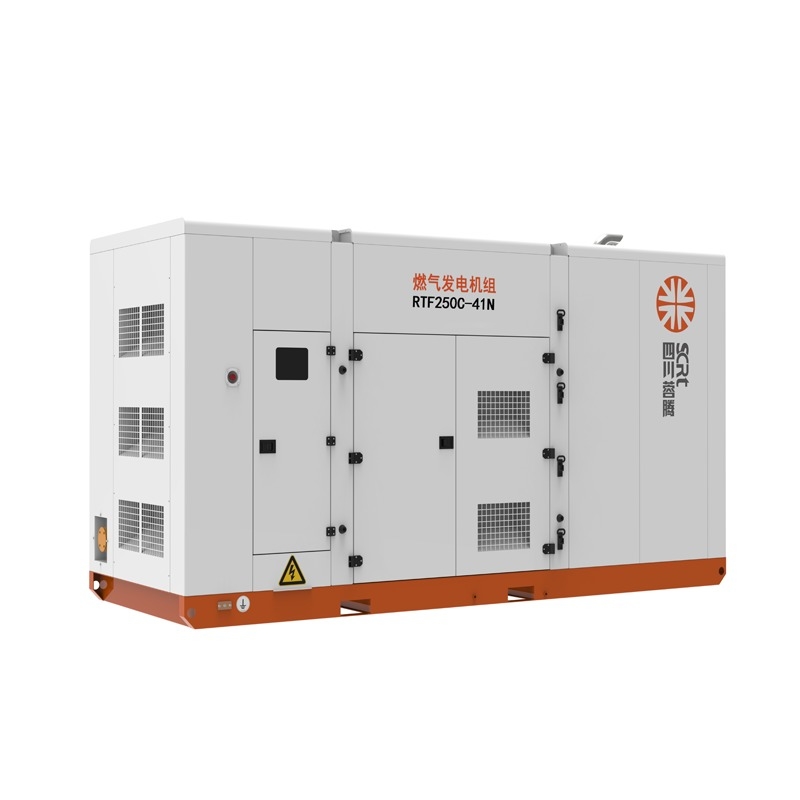

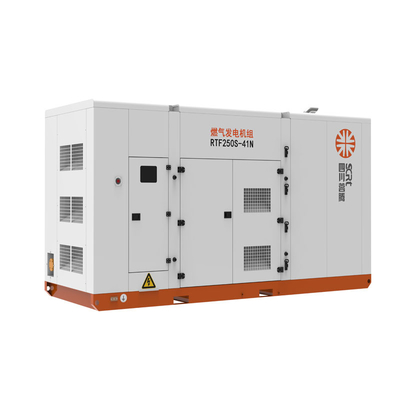

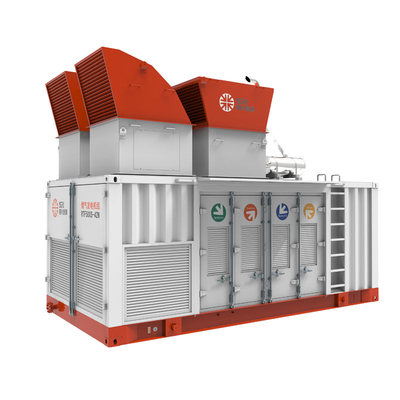

Cheap Small 250KW to 5MW Natural Gas Biogas Generator Set and Gas Powered Engined Generator Gas Generator Sets

Product Details:

Place of Origin:	Sichuan, China
Brand Name:	RongTeng
Certification:	CE

Contact Now

Detailed Product Description

Warranty:	1.5 Years	Core Components:	Engine, Motor
Type:	Generator	Electricity Generator Type:	Natural Gas
Key Selling Points:	Eco-Friendly	Application:	Generate Electricity
OEM:	Avaliable	Configuration:	Mobile
Color:	Customer's Request	Size:	10.633 CBM
Applicable Industries:	Home Use	Applicable:	Energy & Mining
Showroom Location:	Indonesia	Marketing Type:	Ordinary Product

Product Overview

Sichuan Rongteng automation equipment Co., Ltd. is specialized in the R&D, design and production of natural gas generator. The power of single unit is 250KW, and the combined power can realize 500KW ~16MW. Rongteng’s Gas generator set i widely used in LNG skid mounted liquefaction plant, rig gasification, single power generation (well gas recovery), gas power station and other projects. Application ● LNG liquefaction plant ● CNG filling station ● Oil and gas field drilling ● Mine exploitation ● Power generation for industry park and residential areas

● Fuel gas: natural gas, biogas, biomass gas

● Low procurement and running costs;
● Fast maintenance and overhaul service
● Easy maintenance and easy access to spares ● Different options
1. Soundproof system
2. Heat recovery

PRODUCT CONFIGURATION

Unit Features

How to use natural gas to generate electricity?

● The gas generator set is suitable for operation in a range of multiple environmental conditions, and its economic performance is better than that of the existing diesel engine; The unit can quickly respond to load changes and deal with more complex conditions.

● The gas generator unit adopts the integrated partition box design, the box can meet the operation of multiple environmental conditions, and has the functions of rain proof, sand dust proof, mosquito proof, noise reduction, etc. The box body is designed and produced with special structure and materials of high strength container.
● The shape of gas generator box meets the national transportation standard.

Unit Composition And Partition

Unit Cooling
● The cooling system of the gas generator set adopts the fully independent heat dissipation design, that is, the single
intercooling heat dissipation system and the cylinder liner heat dissipation system operate independently, so as to meet the unit's single repair and maintenance without affecting the operation of other units, which greatly meets the unit's maintenance and practicability.
● The hot air of the cooling system is discharged upward in a unified way to avoid hot air backflow and ensure the normal
operation of the cooling system of the unit.
● The cooling system increases the heat dissipation area and heat dissipation under normal heat dissipation conditions, and the cooling effect can better meet the normal operation of the unit under various extreme environmental conditions.

Power Generation Efficiency
(Take 250KW as an example for the following data)

● The full load gas consumption of the generator set is 70-80nm³/h
● The power of generating set is 250kw/h
● 1kW/h=3.6MJ
● 1Nm³/H natural gas calorific value 36MJ
● 31.25% ≤Power generation efficiency ≤35.71%
● 1Nm³ The natural gas power generation is 3.1-3.5kw/h

Adaptability of gas medium

● Applicable gas source calorific value range: 20MJ/Nm³-45MJ/Nm³
● Applicable gas source pressure range: low pressure (3-15kpa), medium pressure (200-450kpa), high pressure (450-700kpa);
● Suitable gas source temperature range: - 30 ~ 50 ℃;
● Design and calibrate the optimal system scheme and control strategy according to the customer's gas conditions to obtain the optimal gas source economy and equipment stability.

Product model sheet

Geneset Model	Fuel type	Natural gas		Natural gas	Natural gas	Natural gas	Natural gas
		Geneset Model	RTF250C- 41N		RTF300C-41N	RTF500C- 42N	RTF750C -43N	RTF1000C- 44N
		Rated power (KW)	200		300	500	750	1000
		Rated power (KW)		312.5		375	625	937.5	1250
		Reserve power (KW)	275		330	550	825	1100
		Reserve power (KW)		343.75		412.5	687.5	1031.25	1375
		Gas consumption	3.2 kW/Nm³			3.2 kW/Nm³	3.2 kW/Nm³	3.2 kW/Nm³
Engine	Engine Model	1-T12			2-T12	3-T12	4-T12
		Number of cylinders - engineering * stroke (mm)	6-126X155			6-126X155	6-126X155	6-126X155
		Engine displacement (L)	11.596			2*11.596	3*11.596	4*11.596
		Starting Method	24VDC Electric Start
		Intake Method	Booster intercooler
		Fuel Control	Lean burn, closed loop control
		Ignition Control	Electronic control single cylinder independent high energy ignition
		Speed control	lectronic speed regulation
		Rated Speed	1500 or 1800
		Cooling Method	Closed-Loop water cooling
Generator	Rated Voltage (V)	230/400			230/400	230/400	230/400
		Rated Current (A)	451			902	1353	1804
		Rated Frequency (Hz)	50 or 60			50 or 60	50 or 60	50 or 60
		Supply Connection	3 Phases 4 Lines
		Rated Power Factor	0.8(Delay)			0.8(Delay)	0.8(Delay)	0.8(Delay)
Dimension	Net weight (kg)	3200			9800	15200	18600
Dimension		(LWH) mm	4200X1500 X2450			6400X3000 X3000	10600X3000X3000	10600X3000X3000

Company Profile

Exhibition

LNG plant

Natural gas treatment skid

3 phase separator

FAQ

How to ensure your Products quality?
We have been in this field for more than 20 years. Our products have been sold almost all over the world. We allow 3rd party inspections before shipment ( on buyer's account) And we can supply certificate of quality accordingly.We also have a matching quality control system that strictly controls product safety before leaving the factory.

Can I customize the logo?
If you do not require, we will use our own brand, if you require custom logo, we can also provide this service.

What is your MOQ?
one set.

How long can you provide warranty?
For no special reason, we provide a 1-2 year warranty. At the same time, if you have problems during use, we provide technical assistance.

How about your delivery time?
In general, it will take 50 days after receiving deposit. The specific delivery time depends on the items and quantity of your order.

What's international certificate for your Products?
GB

Your service?
We will try to reply your inquires in 24 hours.
All our sales stuff will stand in customer’s requirements.
Most of our machine can be customized,we will try to meet client’s requirements.
We have experienced engineer to assist the sales for your answer.
Our aim is wholeheartedly service for customer.
